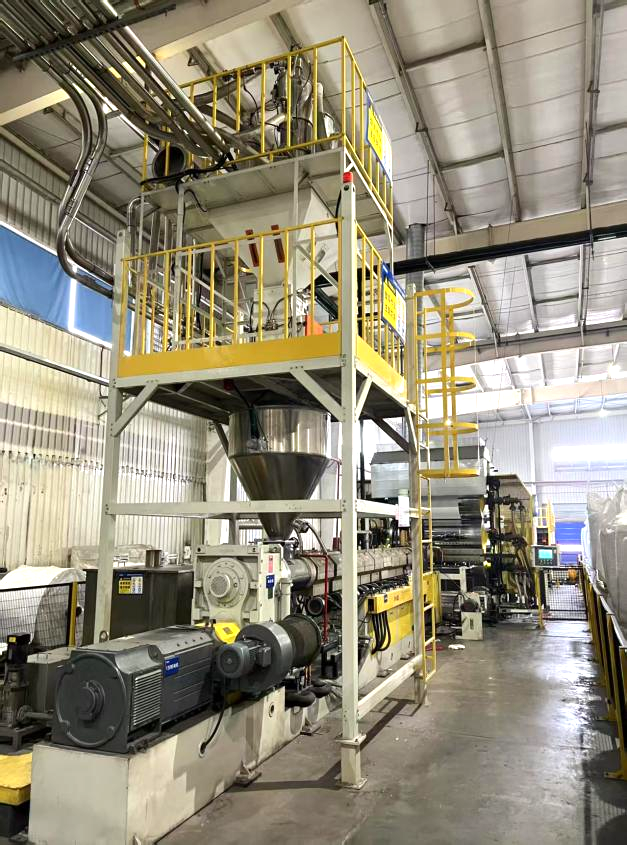

自動供料系統 ：金緯機械精心打造的板材擠出生產線，在國內處于****地位。其具備大產量、低能耗、高智能的**優勢，尤為值得一提的是配備了先進的集中自動供料系統。該系統能夠依據生產線的實時需求，**、高效地輸送各類原材料，有效避免人工供料可能出現的誤差與延誤。不僅極大提升了整體生產效率，還進一步保障了生產過程的穩定性與連續性，為企業實現大規模、高質量的板材生產筑牢堅實基礎 。

Automatic feeding system: JWELL Machinery has meticulously crafted a sheet extrusion production line that holds an absolute leading position in China. It features remarkable advantages such as high output, low energy consumption, and high intelligence. Notably, it is equipped with an advanced centralized automatic feeding system. This system can accurately and efficiently convey various raw materials according to the real-time needs of the production line, effectively avoiding errors and delays that may occur in manual feeding. It not only greatly improves the overall production efficiency but also further ensures the stability and continuity of the production process, laying a solid foundation for enterprises to achieve large-scale and high-quality sheet production.

螺桿轉速自動閉環：在板材擠出生產線中，螺桿轉速自動閉環系統發揮著關鍵作用。生產時，壓力傳感器實時監測模具出料壓力，數據反饋至控制系統，自動調節螺桿轉速。壓力高時，螺桿轉速相應降低；壓力低時，則提升轉速，由此確保模具出料始終保持穩定，大幅提升產品質量與生產效率 。

Automatic closed-loop control of screw rotation speed:  In the sheet extrusion production line， the automatic closed-loop system for screw speed plays a crucial role. During production, the pressure sensor continuously monitors the die discharge pressure. The data is then fed back to the control system, which automatically adjusts the screw speed. When the pressure is high, the screw speed decreases accordingly; when the pressure is low, the speed increases. This ensures stable die discharge at all times, significantly improving product quality and production efficiency.

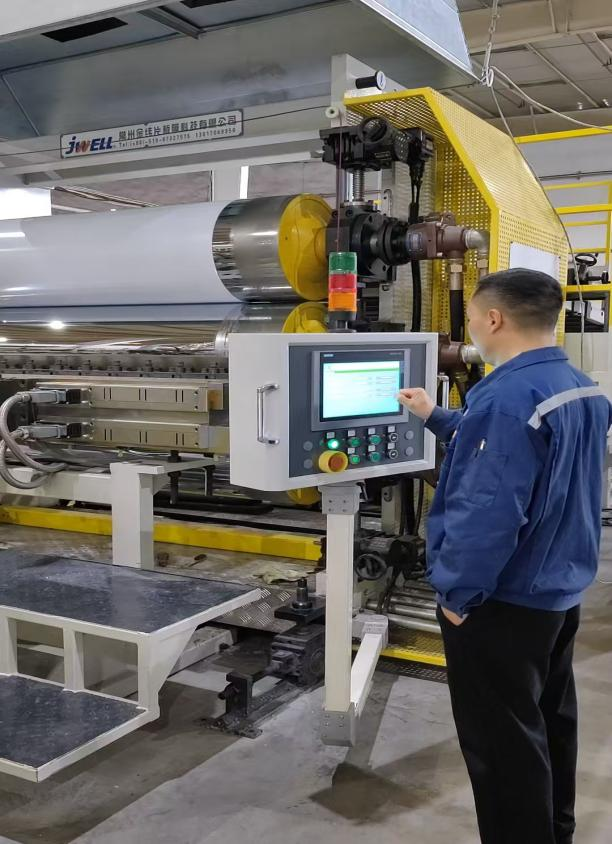

三輥伺服電機自動調整：金緯機械的板材擠出生產線，三輥伺服電機自動調整系統表現**。該系統可依據生產工藝要求，智能且**地自動調整三輥伺服電機間的間隙。在調整過程中，運用先進的運動對應位置控制技術，電機能依據預設程序，自動定位到理想位置，定位精度極高。這不僅保障了板材在輥壓成型時的尺寸**度與表面平整度，還極大提升了生產線的自動化水平與生產效率，助力企業生產出更***的板材產品 。

Automatic adjustment of the three-roll servo motor：In the JWELL Machinery sheet extrusion production line, the automatic adjustment system of the three-roll servo motor performs outstandingly. This system can intelligently and precisely adjust the gaps between the three-roll servo motors automatically according to the requirements of the production process. During the adjustment process, it uses advanced motion-corresponding position control technology. The motors can automatically position themselves to the desired positions according to the preset program, with extremely high positioning accuracy. This not only ensures the dimensional accuracy and surface flatness of the sheet during the rolling and forming process but also greatly improves the automation level and production efficiency of the production line, helping enterprises produce higher-quality sheet products

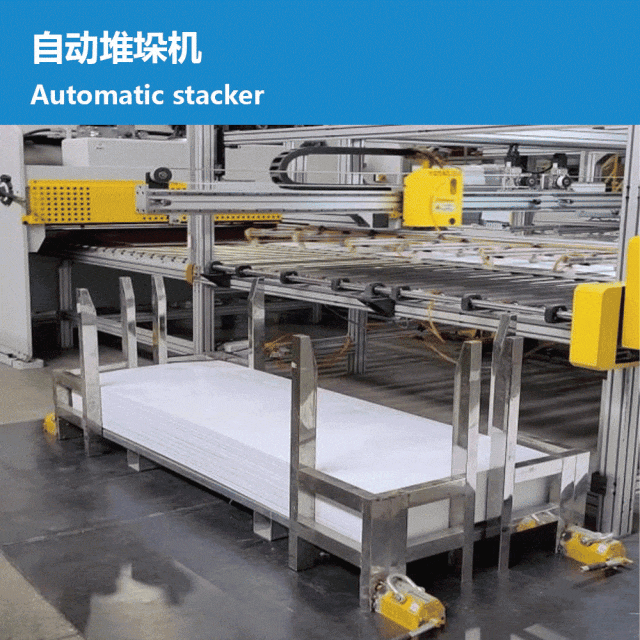

自動化功能多樣：在金緯機械的板材擠出生產線中，自動化功能展現出豐富的多樣性。生產過程中，系統能夠依據不同型號規格的制品，**實現修邊裁斷操作，并同步完成廢邊收集工作，針對部分特殊制品還可達成免修邊功能，減少加工工序。同時，搭配高性能機械手自動堆垛，將成品有序堆疊，以及大卷徑收卷機高效處理卷材，全程高度自動化。這不僅極大降低了生產成本，還**提升產品品質，為企業創造更大價值。

Diverse automation functions：In the sheet extrusion production line of JWELL Machinery, the automation functions demonstrate rich diversity. During production, the system can accurately perform trimming and cutting operations according to different product specifications, and simultaneously complete waste edge collection. For some special products, the edge-free trimming function can be achieved, reducing processing procedures. At the same time, it is equipped with high-performance robotic arms for automatic stacking, orderly stacking finished products, and large-diameter winding machines for efficient processing of coils. The whole process is highly automated. This not only greatly reduces production costs but also significantly improves product quality, creating greater value for enterprises.

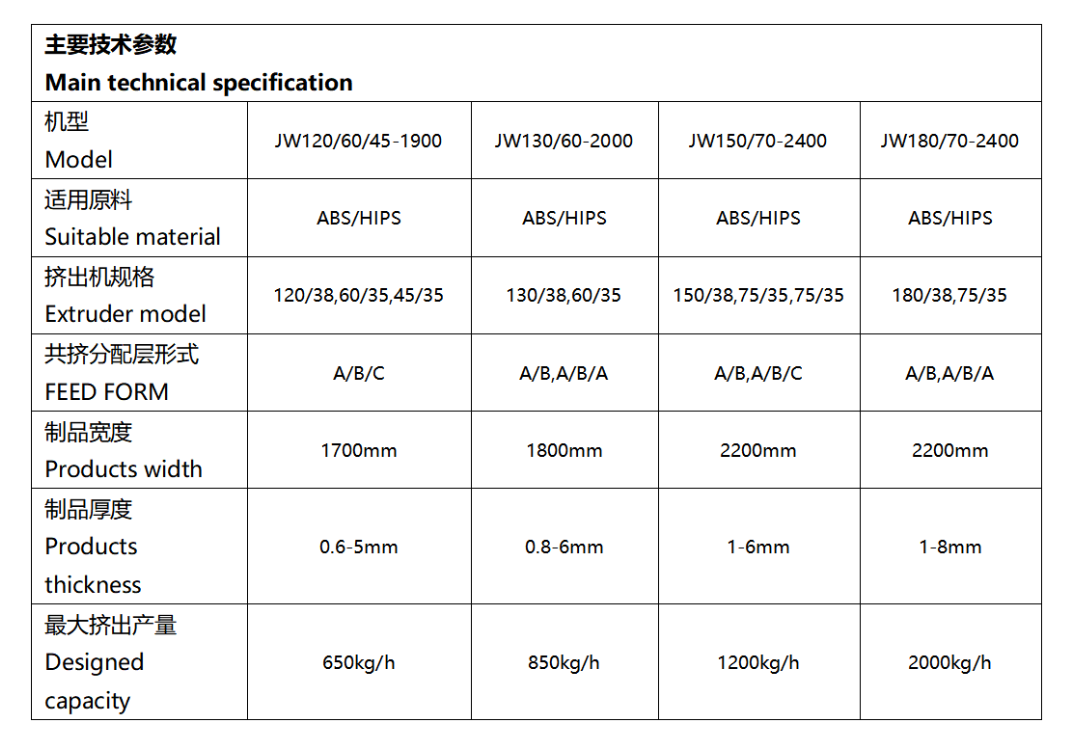

Main technical specification
